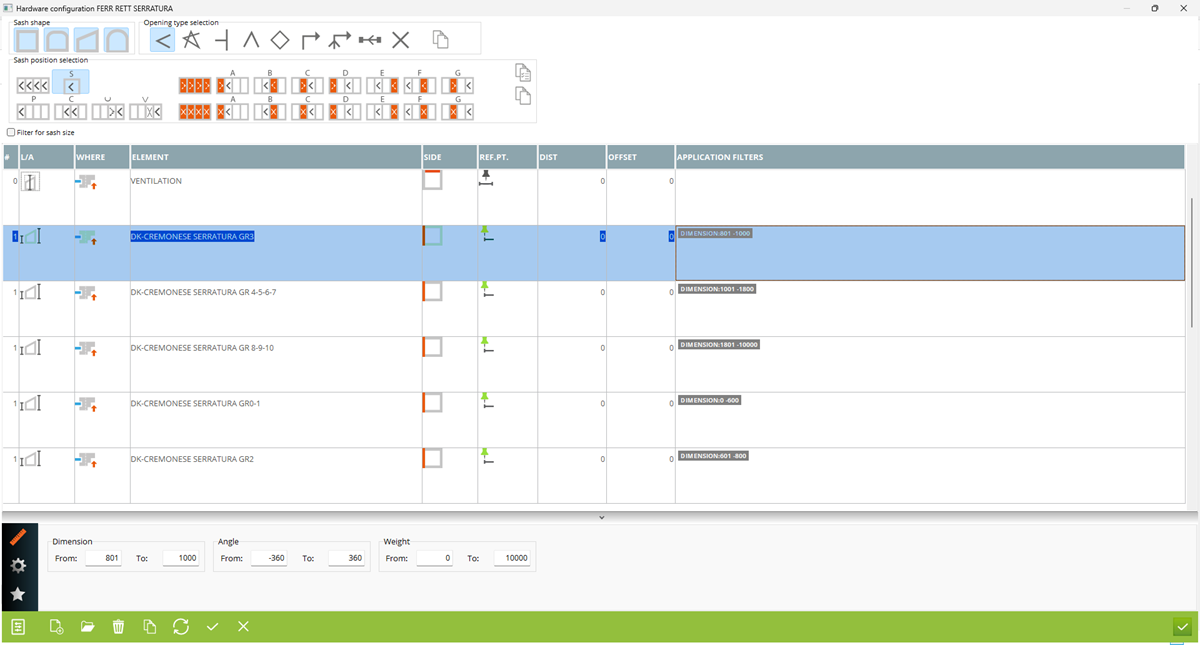

1. Name of opened hardware configuration
2. Filter by sash shape
3. Selection opening type. You have to configure elements application for each opening type
4. Copy configured data between opening types
5. Selection position of active sash. For selected opening type, you have to conigure hardware elements application for particular position of active sashes, receiving sashes, fixed sashes. You can configure for example for all active sashes, for single sash or for other situation from images
6. Selection position of receiving sash
7. Selection position of fixed sash
8. Copy selected items between sash position
9. Copy selected single item between sash position
10. Sequence on list
11. Select dimension, which will be used in range filter
12. Where - select if calculate position of hardware element from the hardware fitting position or from the sash corner
13. Name of hardware element. When would you like to add new hardware element, you have to click in empty space here and then select the hardware element from list
2. Filter by sash shape
3. Selection opening type. You have to configure elements application for each opening type
4. Copy configured data between opening types
5. Selection position of active sash. For selected opening type, you have to conigure hardware elements application for particular position of active sashes, receiving sashes, fixed sashes. You can configure for example for all active sashes, for single sash or for other situation from images
6. Selection position of receiving sash
7. Selection position of fixed sash
8. Copy selected items between sash position
9. Copy selected single item between sash position
10. Sequence on list
11. Select dimension, which will be used in range filter
12. Where - select if calculate position of hardware element from the hardware fitting position or from the sash corner
13. Name of hardware element. When would you like to add new hardware element, you have to click in empty space here and then select the hardware element from list
14. Select side of application
15. Select reference point for which will be applied distance value. We can select between begining of side (green pin), middle of side (black pin), end of side (red pin) or handle position (set during insertin sash in cad design). For each side the calculation is done in clockwise direction
16. Distance value - position of hardware element (calculated from selected reference point on chosen side)
17. Offset - positive value move element more inside sash and negative value more to the ouside of the sash
18. Application filters - open filters option by double click on this field (20). Double click again to hide filters
19. Application filters - click to open filters (20). Click again to hide them
20. Application filters. You can filter for example by dimensions (selected in point 11), angle, weight, type of treshold, etc.
21. Add new element in configuration
22. Open selected hardware element definition
23. Remove hardware element
24. Copy selected hardware element with configured parameters
15. Select reference point for which will be applied distance value. We can select between begining of side (green pin), middle of side (black pin), end of side (red pin) or handle position (set during insertin sash in cad design). For each side the calculation is done in clockwise direction
16. Distance value - position of hardware element (calculated from selected reference point on chosen side)
17. Offset - positive value move element more inside sash and negative value more to the ouside of the sash
18. Application filters - open filters option by double click on this field (20). Double click again to hide filters
19. Application filters - click to open filters (20). Click again to hide them
20. Application filters. You can filter for example by dimensions (selected in point 11), angle, weight, type of treshold, etc.
21. Add new element in configuration
22. Open selected hardware element definition
23. Remove hardware element
24. Copy selected hardware element with configured parameters
Here you can define application of hardware elements
