1. The place to insert the name of the working - For example, in working to make the workings more clearly defined, it is recommended to specify Lxxx - where L stands for the working length of the tool (the red line in the tool preparation) Rxx - where R means the working radius (x) - where it means the tool offset and Zxx - where it means the tool correction relative to the working length of the tool. E.g. L160 R49 (0) Z0
2. Name of the tool for that working
3. Working type - a place to choose the working type
4. Milling subtype - a place to choose the subtype of working
5. Working radius - The place to set the working radius. Note: All of the workings must have the same working radius
6. Azimuth angle - A place to set the angle of working
7. Sequence - the place to set the sequence of that working. Note: Better to set the sequence on profile logic to have more clear sequence of workings.
8. Machining hood - A place to set the hood position on machine
9. Machining hood 2 - A place to set the hood second position on machine
10. Offset - The place to set the offset of radius (on the plus side the tool goes deeper into the material, on the minus side the tool moves away from the material)
11. Offset reference if piece overturned - Reference point when rotated element
12. Additional options - For example if working must be using for hardware the option utilizable for hardware must be ckecked
13. Colour - set the colour of working
2. Name of the tool for that working
3. Working type - a place to choose the working type
4. Milling subtype - a place to choose the subtype of working
5. Working radius - The place to set the working radius. Note: All of the workings must have the same working radius
6. Azimuth angle - A place to set the angle of working
7. Sequence - the place to set the sequence of that working. Note: Better to set the sequence on profile logic to have more clear sequence of workings.
8. Machining hood - A place to set the hood position on machine
9. Machining hood 2 - A place to set the hood second position on machine
10. Offset - The place to set the offset of radius (on the plus side the tool goes deeper into the material, on the minus side the tool moves away from the material)
11. Offset reference if piece overturned - Reference point when rotated element
12. Additional options - For example if working must be using for hardware the option utilizable for hardware must be ckecked
13. Colour - set the colour of working
14. Description - The place to set the description of that working
15. Working path - The place to choose the working path, if selected automatic, the tools going on correct way always when working on ends sides. Note: For tools like a drill or end mill must be choosen a path none then the path of the tool is calculated from its centre
16. Tool input/output type
17. Inversion - if selected the tool inverts the machining working
18. Input/output radius - Tool entry and exit radius, usually given as the maximum radius of the tool multiplied by 1.2

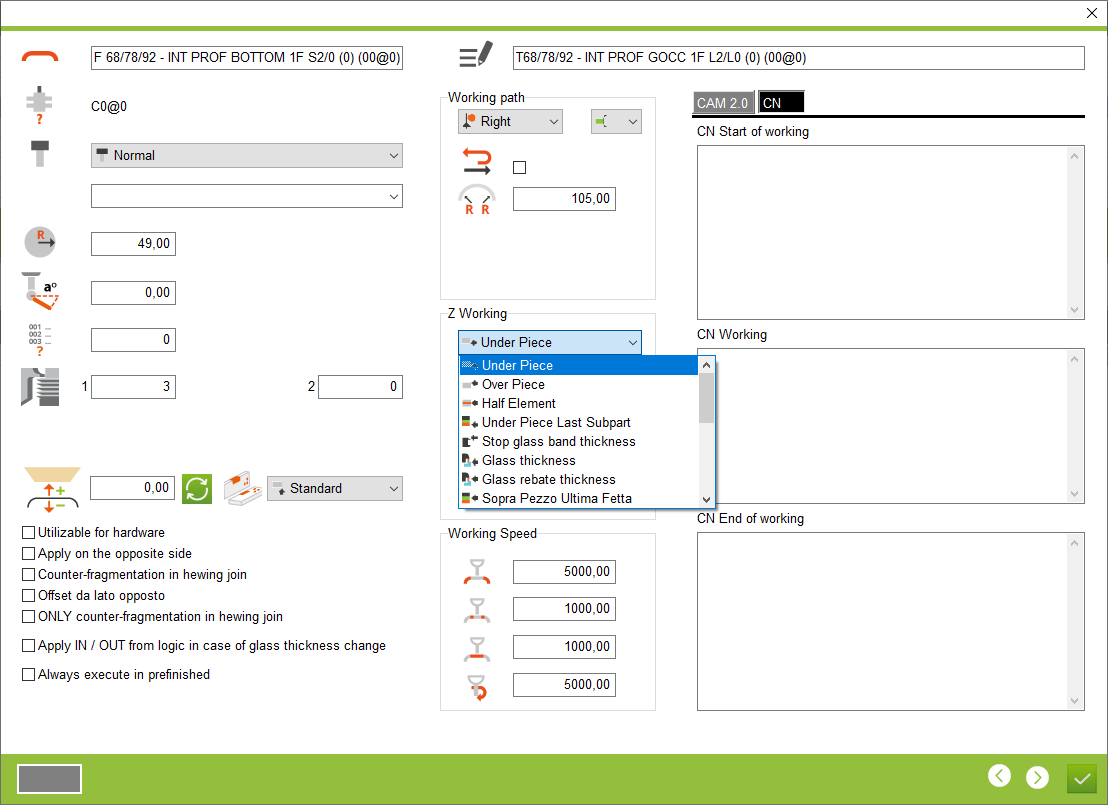

19. Z position of tool - Selection point for positioning the workings in relation to the under piece, over piece, half element, stop glass band thickness
20. In/Out speed - Tool input and output speed
21. Counter-fragmentation speed - Speed anti material break-out
22. Feed speed - Feed speed in the material
23. Rotation speed
24. CN - Tab with special CN codes for workings
25. CN Start of working - Place where you add the special CN code before working. Note: Added by Kosmosoft technician
26. CN working - Place to add special CN code for working. Note: Added by Kosmosoft technician
27. CN End of working - Place where you add the special CN code after working. Note: Added by Kosmosoft technician
15. Working path - The place to choose the working path, if selected automatic, the tools going on correct way always when working on ends sides. Note: For tools like a drill or end mill must be choosen a path none then the path of the tool is calculated from its centre
16. Tool input/output type
17. Inversion - if selected the tool inverts the machining working
18. Input/output radius - Tool entry and exit radius, usually given as the maximum radius of the tool multiplied by 1.2
19. Z position of tool - Selection point for positioning the workings in relation to the under piece, over piece, half element, stop glass band thickness
20. In/Out speed - Tool input and output speed
21. Counter-fragmentation speed - Speed anti material break-out
22. Feed speed - Feed speed in the material
23. Rotation speed
24. CN - Tab with special CN codes for workings
25. CN Start of working - Place where you add the special CN code before working. Note: Added by Kosmosoft technician
26. CN working - Place to add special CN code for working. Note: Added by Kosmosoft technician
27. CN End of working - Place where you add the special CN code after working. Note: Added by Kosmosoft technician
This is the place in the program where the user can configure the working, which is then applied to the individual profile logics.
