1. Name of configuration - A place for the user to enter a configuration name
2. Description of configuration - A place for the user to enter a configuration description
3. Type of window - A place to set the type of window (for example: normal, sliding sash or HS portal)
4. Definition of element - This is the place in the program where sections and thickness are defined for each sash element
5. Junctions - A place to choose type of junction for elements
6. Central elements - This is the place in the program where sections and thickness are definied for central sash elements
7. Applied transom - A place to set thickness and section for applied transom elements
8. Matchboard - configuration of matchboard
9. Configuration profile aplication - A place to set profile aplication for that configuration
10. Options - A place to set other option for that configuration
2. Description of configuration - A place for the user to enter a configuration description
3. Type of window - A place to set the type of window (for example: normal, sliding sash or HS portal)
4. Definition of element - This is the place in the program where sections and thickness are defined for each sash element
5. Junctions - A place to choose type of junction for elements
6. Central elements - This is the place in the program where sections and thickness are definied for central sash elements
7. Applied transom - A place to set thickness and section for applied transom elements
8. Matchboard - configuration of matchboard
9. Configuration profile aplication - A place to set profile aplication for that configuration
10. Options - A place to set other option for that configuration

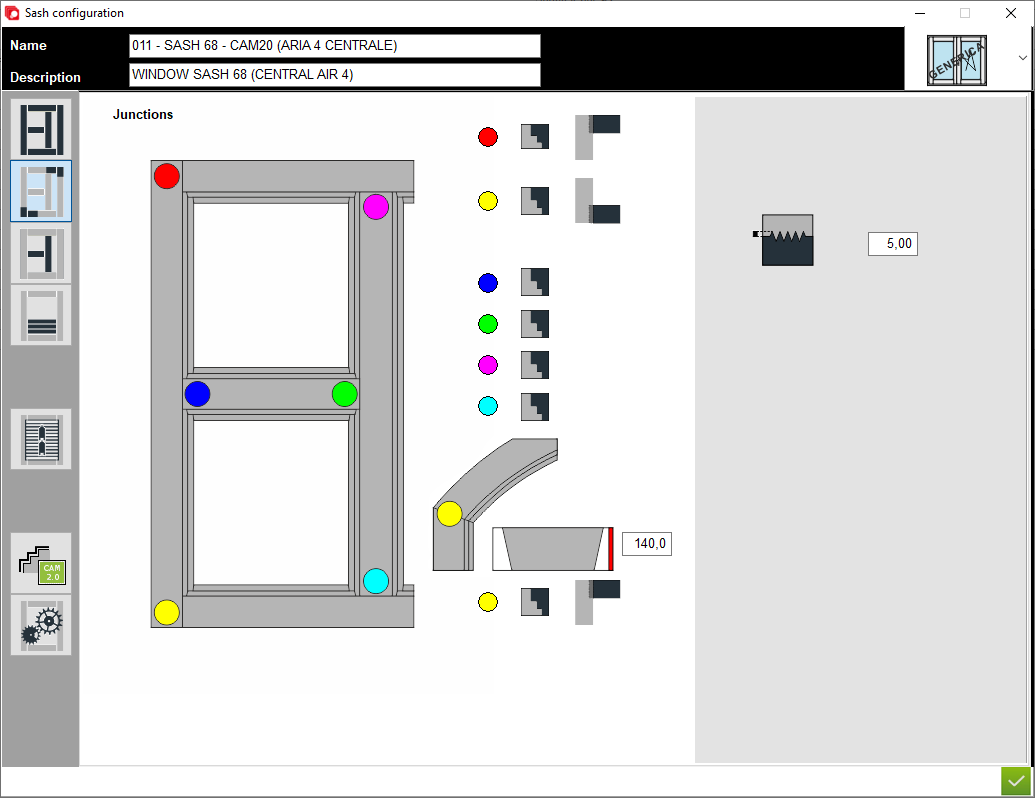

11. Junction type - A Place to set the junction type for top and left or right side connection ( From left: Minizinchen, tenone, counter-profile, closed tenone, 45 degrees) After choose tenone, counter-profile or closed tenon we nned to choose which element is to be by the whole and which to be receive
12. Junction type - A Place to set the junction type for bottom and left or right side connection
13. Junction type - A Place to set the junction type for central horizontal and left or right side connection
14. Junction type - A Place to set the junction type for central horizontal and central verical connection
15. Junction type - A Place to set the junction type for top and central verical connection
16. Junction type - A Place to set the junction type for bottom and central verical connection
17. Junction type - A Place to set the junction type for arch and left or right side connection
18. Maximum section of material using for arch element
19. Depth of Minizinchen tooth
12. Junction type - A Place to set the junction type for bottom and left or right side connection
13. Junction type - A Place to set the junction type for central horizontal and left or right side connection
14. Junction type - A Place to set the junction type for central horizontal and central verical connection
15. Junction type - A Place to set the junction type for top and central verical connection
16. Junction type - A Place to set the junction type for bottom and central verical connection
17. Junction type - A Place to set the junction type for arch and left or right side connection
18. Maximum section of material using for arch element
19. Depth of Minizinchen tooth
Junction type
This is the place in the program where the user defines the type of junctions for the external and internal parts of the structure.
