1. Profile name - Enter the profile name
2. Profile description - Enter profile description
3. Profile type - Select profile type, the currently selected profile is the external profile opening to the inside, which enables you to enter the values for this profile type below. If user want to choose other profile please click on drawing or on point 1
4. Rebate size - Entering the size of the rebate
5. Overlap for sash in sash - for the sash-in-sash module, we specify the overlap for this solution
6. Rebate thicknes - Entering the thicknes of the rebate
7. Hardware distance - distance for hardware should only be given in the case of special situations
2. Profile description - Enter profile description
3. Profile type - Select profile type, the currently selected profile is the external profile opening to the inside, which enables you to enter the values for this profile type below. If user want to choose other profile please click on drawing or on point 1
4. Rebate size - Entering the size of the rebate
5. Overlap for sash in sash - for the sash-in-sash module, we specify the overlap for this solution
6. Rebate thicknes - Entering the thicknes of the rebate
7. Hardware distance - distance for hardware should only be given in the case of special situations
8. Z position correction for sash, relative to frame - Select the positioning point of the sash relative to the frame and enter the value in which position the sash is to be moved
9. Create logic of level 2 - If checked, it will create our profile logic in the CAM2.0 section
10. Apply - Apply the changes, after clicking on the "Apply" button, additional tabs will appear for entering counter profiles and overlaps

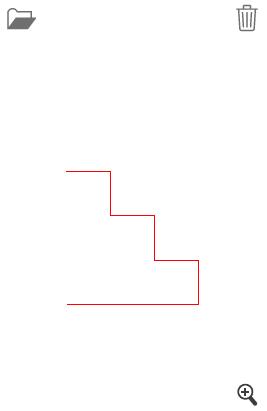

11. Open a drawing - Select profile drawing
12. Delete a drawing
13. Show drawing - Opens drawing preview
9. Create logic of level 2 - If checked, it will create our profile logic in the CAM2.0 section
10. Apply - Apply the changes, after clicking on the "Apply" button, additional tabs will appear for entering counter profiles and overlaps
11. Open a drawing - Select profile drawing
12. Delete a drawing
13. Show drawing - Opens drawing preview
This is the place in the program where the user defines the profile values
