1. Profile name - Enter the profile name
2. Profile description - Enter profile description
3. Profile type - Select profile type, the currently selected profile is the external profile opening to the inside, which enables you to enter the values for this profile type below. If user want to choose other profile please click on drawing or on point 1
4. Stop glas band section - Entering the section values of the glazing bead
5. Stop glass band thickness - The value is given if the glazing bead is to be of a "fixed" thickness without the possibility of changing it according to the thickness of the glass
6. Fixed stop glass band thickness - Value for the thickness of the fixed glazing bead
7. Increase glass place - The value by which the glass has to be extended to be calculated correctly for this profile
8. Increase glass place - The value by which the glass has to be extended to be calculated correctly for this profile
2. Profile description - Enter profile description
3. Profile type - Select profile type, the currently selected profile is the external profile opening to the inside, which enables you to enter the values for this profile type below. If user want to choose other profile please click on drawing or on point 1
4. Stop glas band section - Entering the section values of the glazing bead
5. Stop glass band thickness - The value is given if the glazing bead is to be of a "fixed" thickness without the possibility of changing it according to the thickness of the glass
6. Fixed stop glass band thickness - Value for the thickness of the fixed glazing bead
7. Increase glass place - The value by which the glass has to be extended to be calculated correctly for this profile
8. Increase glass place - The value by which the glass has to be extended to be calculated correctly for this profile
9. Rebate thickness - Entering the thickness of the rebate
10. Rebate size - Entering the size of the rebate
11. Hardware distance - distance for hardware should only be given in the case of special situations
12. Apply - Apply the changes, after clicking on the "Apply" button, additional tabs will appear for entering counter profiles and overlaps
13. Create logic of level 2 - If checked, it will create our profile logic in the CAM2.0 section

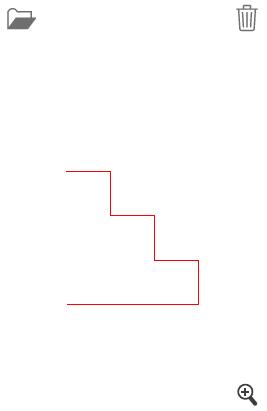

14. Open a drawing - Select profile drawing
15. Delete a drawing
16. Show drawing - Opens drawing preview
17. Z position correction for sash, relative to frame - Select the positioning point of the sash relative to the frame and enter the value in which position the sash is to be moved
10. Rebate size - Entering the size of the rebate
11. Hardware distance - distance for hardware should only be given in the case of special situations
12. Apply - Apply the changes, after clicking on the "Apply" button, additional tabs will appear for entering counter profiles and overlaps
13. Create logic of level 2 - If checked, it will create our profile logic in the CAM2.0 section
14. Open a drawing - Select profile drawing
15. Delete a drawing
16. Show drawing - Opens drawing preview
17. Z position correction for sash, relative to frame - Select the positioning point of the sash relative to the frame and enter the value in which position the sash is to be moved

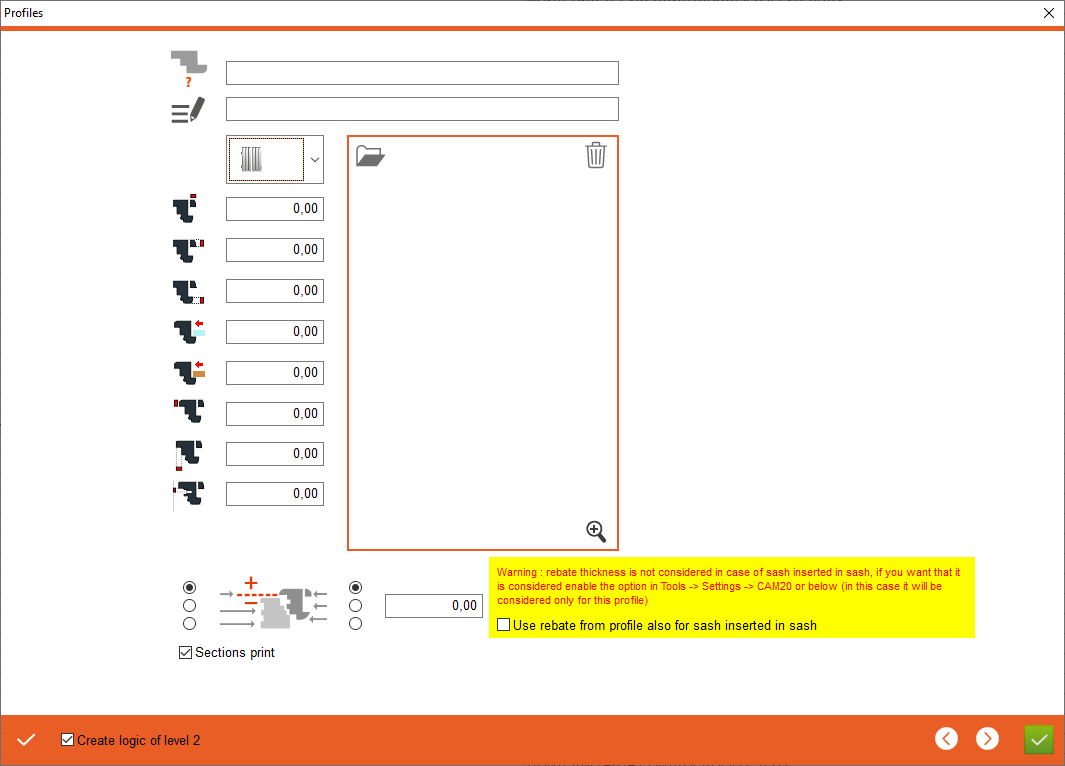

This is the place in the program where the user defines the profile values
