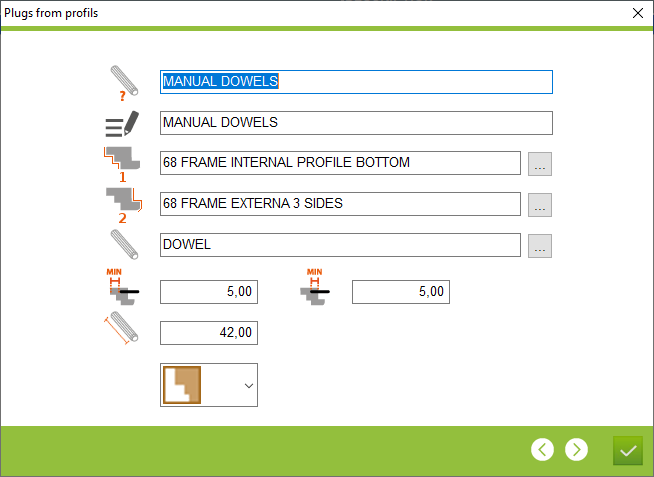

1. Name of dowel configuration
2. Description of dowel configuration
3. Select the first profile to which the dowel configuration must be added
4. Select the second profile to which the dowel configuration must be added
5. Select dowel logic from the additional logics
2. Description of dowel configuration
3. Select the first profile to which the dowel configuration must be added
4. Select the second profile to which the dowel configuration must be added
5. Select dowel logic from the additional logics

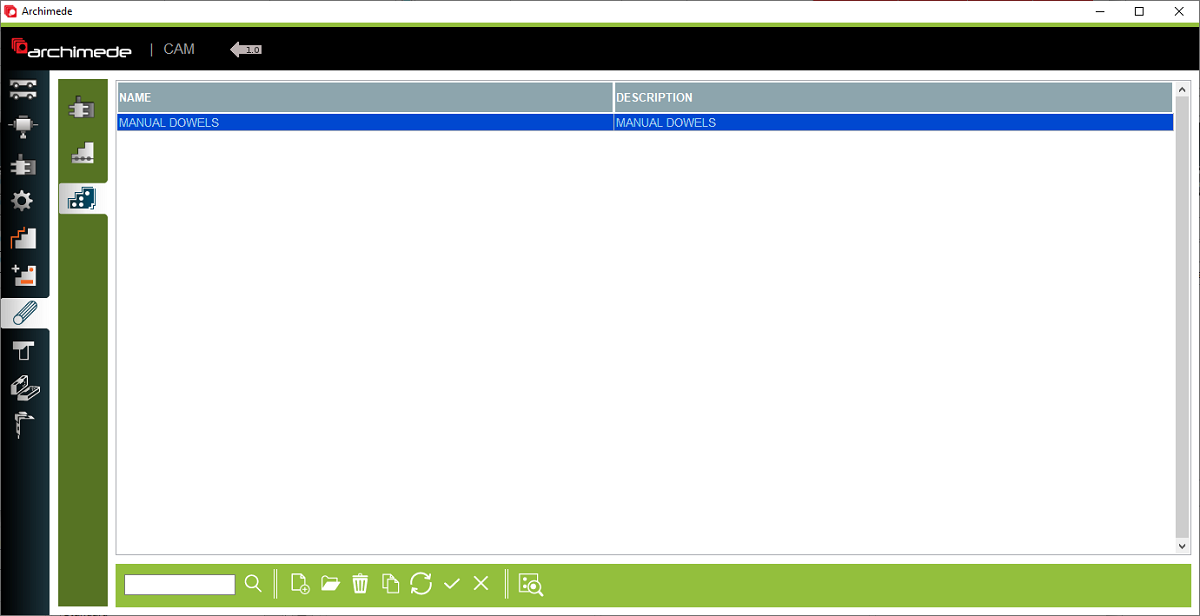

1. Tools aggregate model
2. Lines of plugs
3. Plugs from profiles
4. Basic program operation buttons
5. Open - Double click to open the dowels from profile
2. Lines of plugs
3. Plugs from profiles
4. Basic program operation buttons
5. Open - Double click to open the dowels from profile
6. Minimum distance in depth from the profile
7. Lenght of the dowels
8. Minimum depth of the dowel
9. Selection of the connection for which the pin line is to be used. There are two possibilities for counter-profile and closed tenons
7. Lenght of the dowels
8. Minimum depth of the dowel
9. Selection of the connection for which the pin line is to be used. There are two possibilities for counter-profile and closed tenons
This is the place in the program where the user can assign dowel logics from the accessory logics for the profiles that have been selected on the internal and external side. The dowel logic will only be used if the both profiles are loaded on the same structure
